ZIPPERTUBING (JAPAN) LTD


Zippertubing (Japan) Ltd make EMI gaskets called shield foam 71TS.

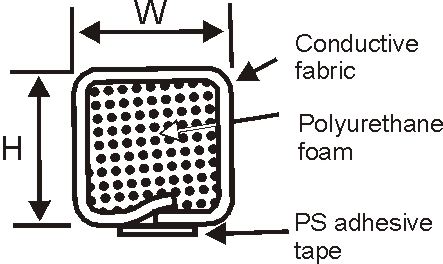

Structure & Materials




Conductive Fabric  Polyester Fabric, Metal Plated
Urethane Foam Polyester type, Flame retardant
Adhesive Tape Acrylic





PRODUCT RANGE

 Part Numbers and Standard Sizes

Rectangular
Part Number
Size
(W x H)
Part Number
Size
(W x H)
71TS 3-1
 3x1.0
71TS
9-3  9x3.5
4-1
 4x1.0
10-1 10x1.0
4-1.5
 4x1.5
10-2 10x2.0
4-3
 4x2.0
10-4 10x4.0
4-4
 4x2.0
10-5 10x5.5
5-0.5
 5x0.5
10-8 10x8.0
5-1
 5x1.0
10-10 10x10.5
5-1.5
 5x1.5
13-1 13x1.0
5-3
 5x3.5
13-3 13x3.5
5-5
 5x5.5
13-6 13x6.5
6-6
 6x6.5
13-10 13x10.5
7-1
 7x1.0
21-2 21x2.0
Profiled
Part Number
Size
(W x H)
Part Number
Size
(W x H)
71TSL L-Shape  10x9.0 71TSP P-Shape  13x4.0
71TSD D-Shape   6x3.0 71TSN N-Shape  12x1.0
    Standard Length = 1 meter
    Tolerance = ± 0.5mm  Cutting tolerance = ± 1.0mm
    71TS 5-0.5 has no sponge


FEATURES

1. The surface resistivity is 0.1ohms/sq. and it gives an excellent grounding effect as conductive metal.
2. As the core is made of urethane foam, it requires small strength for compression and it is excellent in restoration.
3. It is excellent in air-tightness in close fit to the housing because the surface is smooth and flat
4. There is no need for making grooves in the housing for mounting gaskets.  Very easy to affix simply by adhesive tape.
5. It is available to cut appropriate length by scissors.
6. UL approved types (94 V-1, UL File No. E158850(N)) are available.


APPLICATIONS

      EMI/ESD Gasket and Grounding.
      For:  Computers, Testing/Measuring Instruments, Communication Systems and other electronic equipment.


SPECIAL FORMS

1. Special size:  Width, height, length
2. Adhesive tape:  Various types of adhesive tape (conductive, flame retardant), tape width, tape location, with tape or without tape.
3. Core materials:  Neoprene sponge, EPDM sponge.
4. Special forms:  Die-cut etc.

For More Technical Information, Pricing, Availability and Ordering Information Contact: info@specon.com.au
