PRODUCT APPLICATIONS

FLAKES


TADPOLES


NEEDLES


SPHERES


ALUMINUM PRODUCT SPECIFICATIONS
Product
Name
Basic
Shape
Length
(in./mm.)
Width
(in./mm)
Thickness
(in./µm.)
Bulk Density
(lbs./ft.„)
(gr/cm„)
Repose
Angle
(degrees)
Standard
Package
Size
(lbs./Kg)
K-102
Square
Flake
.04/1.3 .04/1.0 .001/25 20/.32 44 25/11.34
K-101 Rectangular
Flake
.02/.6 .04/1.0 .001/25 20/.32 44 20/9.1
K-107 Flat
Fiber
.08/2.0 .02/.5 .001/25 12/.19 52 20/9.1
K-109 Flake .02/.6 .02/.6 .001/25 29/.47 43 25/11.34
N-101 Needle .18/4.8 -/- .020/500 79/1.26 45 50/22.68
T-101 Tadpole .06/1.4 -/- .024/600 98/1.57 32 50/22.68
T-102 Tadpole .04/1.0 -/- .016/400 101/1.61 30 50/22.68
T-103 Tadpole .08/2.0 -/- .035/900 91/1.45 33 50/22.68
  Notes:
  • Data based on standard alloy of 99% aluminum or purer

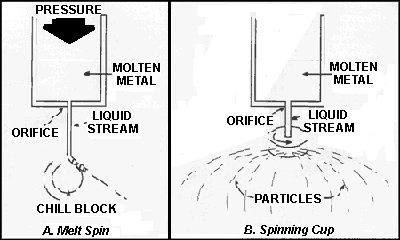

  • All products made by direct metal forming rapid solidification processes
  • All dimensions are average sizes
  • SPECIAL SHAPES, ALLOYS OR METALS AVAILABLE UPON REQUEST, INCLUDING ZINC, BRONZE, COPPER AND TIN
  • T-101, T-102 and T-103 also are available in 319 Aluminum Alloy

For More Technical Information Contact:  Transmet Corporation  http://www.transmet.com

For Pricing, Availability and Ordering Information Contact: info@specon.com.au
